How to Create Translucent and Shaped Windows如何创建半透明和塑形窗口

As of the Java Platform, Standard Edition 6 (Java SE 6) Update 10 release, you can add translucent and shaped windows to your Swing applications. 从Java Platform，Standard Edition 6(Java SE 6)Update 10发行版开始，您可以向Swing应用程序添加半透明和形状的窗口。This page covers the following topics:本页涵盖以下主题：

• Supported Capabilities支持的功能
• Determining a Platform's Capabilities确定平台的功能
• How to Implement Uniform Translucency如何实现均匀半透明
• How to Implement Per-Pixel Translucency如何实现每像素半透明
• How to Implement a Shaped Window如何实现形状窗口
• Java SE Release 6 Update 10 APIJava SE Release 6 Update 10 API

Supported Capabilities支持的功能

This functionality, which is part of the public AWT package in the JDK 7 release, takes three forms, as follows:此功能是JDK 7版本中公共AWT包的一部分，有三种形式，如下所示：

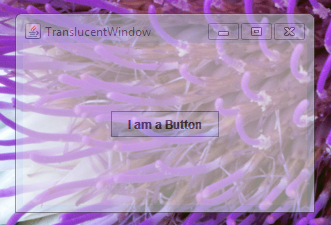

• You can create a window with uniform translucency, where each pixel has the same translucency (or alpha) value. 可以创建具有一致性半透明的窗口，其中每个像素具有相同的半透明（或alpha）值。The following screen capture shows a window with 45 percent translucency. 下面的屏幕截图显示了一个半透明度为45%的窗口。

  ---

  Try this:

  Click the Launch button to run the TranslucentWindowDemo example using Java™ Web Start. 单击Launch按钮，使用Java™Web启动运行TranslucentWindowDemo示例。This example requires JDK 7 or later. 此示例需要JDK 7或更高版本。Alternatively, to compile and run the example yourself, consult the example index.或者，要自己编译和运行示例，请参考示例索引。



  ---

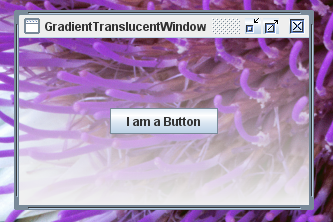

• You can create a window with per-pixel translucency, where each pixel has its own alpha value. With this feature you can, for example, create a window that fades away to nothing by defining a gradient in the alpha values. 可以创建具有每像素半透明的窗口，其中每个像素都有自己的alpha值。例如，使用此功能，您可以通过在alpha值中定义渐变来创建一个淡入淡出的窗口。The following screen capture shows a window with gradient translucency from the top (fully translucent) to the bottom (fully opaque). 下面的屏幕截图显示了一个从顶部（完全透明）到底部（完全不透明）具有渐变半透明的窗口。

  ---

  Try this:

  Click the Launch button to run the GradientTranslucentWindowDemo example using Java™ Web Start. 单击“启动”按钮，使用Java™Web启动运行GradientTranslucentWindowDemo示例。This example requires JDK 7 or later. 此示例需要JDK 7或更高版本。Alternatively, to compile and run the example yourself, consult the example index.或者，要自己编译和运行示例，请参考示例索引。



  ---

• You can create a window with any Shape object that you can define. 可以使用可以定义的任何Shape对象创建窗口。Shaped windows can be opaque, or they can use uniform, or per-pixel, translucency. 形状窗口可以是不透明的，也可以使用一致性的或每像素的半透明。The following screen capture shows an oval-shaped window with 30 percent translucency. 下面的屏幕截图显示了一个半透明率为30%的椭圆形窗口。

  ---

  Try this:

  Click the Launch button to run the ShapedWindowDemo example using Java™ Web Start. 单击Launch按钮，使用Java™启动运行ShapedWindowDemo示例。This example requires JDK 7 or later. 此示例需要JDK 7或更高版本。Alternatively, to compile and run the example yourself, consult the example index.或者，要自己编译和运行示例，请参考示例索引。



  ---

Determining a Platform's Capabilities确定平台的功能

• TRANSLUCENT – The underlying platform supports windows with uniform translucency, where each pixel has the same alpha value.底层平台支持具有一致性半透明的窗口，其中每个像素具有相同的alpha值。
• PERPIXEL_TRANSLUCENT – The underlying platform supports windows with per-pixel translucency. 底层平台支持每像素半透明窗口。This capability is required to implement windows that fade away.实现淡入淡出的窗口需要此功能。
• PERPIXEL_TRANSPARENT – The underlying platform supports shaped windows.底层平台支持成型窗口。

import static java.awt.GraphicsDevice.WindowTranslucency.*;

// Determine what the default GraphicsDevice can support.
GraphicsEnvironment ge =
    GraphicsEnvironment.getLocalGraphicsEnvironment();
GraphicsDevice gd = ge.getDefaultScreenDevice();

boolean isUniformTranslucencySupported =
    gd.isWindowTranslucencySupported(TRANSLUCENT);
boolean isPerPixelTranslucencySupported =
    gd.isWindowTranslucencySupported(PERPIXEL_TRANSLUCENT);
boolean isShapedWindowSupported =
    gd.isWindowTranslucencySupported(PERPIXEL_TRANSPARENT);

How to Implement Uniform Translucency如何实现均匀半透明

The TranslucentWindowDemo.java example creates a window that is 55 percent opaque (45 percent translucent). TranslucentWindowDemo.java示例创建了一个55%不透明（45%半透明）的窗口。If the underlying platform does not support translucent windows, the example exits. 如果底层平台不支持半透明窗口，则退出示例。The code relating to opacity is shown in bold.与不透明度相关的代码以粗体显示。

import java.awt.*;
import javax.swing.*;
import static java.awt.GraphicsDevice.WindowTranslucency.*;

public class TranslucentWindowDemo extends JFrame {
    public TranslucentWindowDemo() {
        super("TranslucentWindow");
        setLayout(new GridBagLayout());

        setSize(300,200);
        setLocationRelativeTo(null);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        //Add a sample button.
        add(new JButton("I am a Button"));
    }

    public static void main(String[] args) {
        // Determine if the GraphicsDevice supports translucency.
GraphicsEnvironment ge =
            GraphicsEnvironment.getLocalGraphicsEnvironment();
        GraphicsDevice gd = ge.getDefaultScreenDevice();

        //If translucent windows aren't supported, exit.
if (!gd.isWindowTranslucencySupported(TRANSLUCENT)) {
            System.err.println(
                "Translucency is not supported");
                System.exit(0);
        }

        JFrame.setDefaultLookAndFeelDecorated(true);

        // Create the GUI on the event-dispatching thread
        SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                TranslucentWindowDemo tw = new TranslucentWindowDemo();

                // Set the window to 55% opaque (45% translucent).
tw.setOpacity(0.55f);

                // Display the window.
                tw.setVisible(true);
            }
        });
    }
}

Note that the button is also affected by the uniform translucency. 请注意，按钮也受均匀半透明的影响。Setting the opacity affects the whole window, including any components that the window contains.设置不透明度会影响整个窗口，包括窗口包含的任何组件。

How to Implement Per-Pixel Translucency如何实现每像素半透明

Invoking setBackground(new Color(0,0,0,0)) on the window causes the software to use the alpha values to render per-pixel translucency. 在窗口上调用setBackground(new Color(0,0,0,0))会导致软件使用alpha值渲染每像素半透明。In fact, invoking setBackground(new Color(0,0,0,alpha), where alpha is less than 255, installs per-pixel transparency. 事实上，调用setBackground(new Color(0,0,0,alpha)，其中alpha小于255，将安装每像素透明度。So, if you invoke setBackground(new Color(0,0,0,128)) and do nothing else, the window is rendered with 50 percent translucency for each background pixel. 因此，如果调用setBackground(new Color(0,0,0,128))而不执行其他操作，则窗口将以每个背景像素50%的半透明度渲染。However, if you are creating your own range of alpha values, you most likely will want an alpha value of 0.但是，如果您正在创建自己的alpha值范围，则很可能希望alpha的值为0。

While not prohibited by the public API, you will generally want to enable per-pixel translucency on undecorated windows. 虽然公共API不禁止，但您通常希望在未装饰的窗口上启用每像素半透明。In most cases, using per-pixel translucency on decorated windows does not make sense. 在大多数情况下，在装饰窗上使用每像素半透明是没有意义的。Doing so can disable the decorations, or cause other platform-dependent side effects.这样做可能会禁用装饰，或导致其他依赖于平台的副作用。

To determine if a window is using per-pixel translucency, you can use the isOpaque method.要确定窗口是否使用逐像素半透明，可以使用isOpaque方法。

An example follows. First, here are the steps required to implement the example:下面是一个例子。首先，以下是实施示例所需的步骤：

1. Invoke setBackground(new Color(0,0,0,0)) on the window.在窗口上调用setBackground(new Color(0,0,0,0))。
2. Create a JPanel instance that overrides the paintComponent method.创建覆盖paintComponent方法的JPanel实例。
3. In the paintComponent method, create a GradientPaint instance.在paintComponent方法中，创建GradientPaint实例。
4. In the example, the top of the rectangle has an alpha value of 0 (the most transparent) and the bottom has an alpha value of 255 (the most opaque). 在本例中，矩形的顶部的alpha值为0（最透明），底部的alphas值为255（最不透明）。The GradientPaint class smoothly interpolates the alpha values from the top to the bottom of the rectangle.GradientPaint类从矩形的顶部到底部平滑插值alpha值。
5. Set the GradientPaint instance as the panel's paint method.将GradientPaint实例设置为面板的绘制方法。

Here is the code for the GradientTranslucentWindowDemo.java example. 下面是GradientTranslucentWindowDemo.java示例的代码。If the underlying platform does not support per-pixel translucency, this example exits. 如果底层平台不支持每像素半透明，则退出此示例。The code specifically relating to creating the gradient window is shown in bold.与创建渐变窗口相关的代码以粗体显示。

import java.awt.*;
import javax.swing.*;
import static java.awt.GraphicsDevice.WindowTranslucency.*;

public class GradientTranslucentWindowDemo extends JFrame {
    public GradientTranslucentWindowDemo() {
        super("GradientTranslucentWindow");
setBackground(new Color(0,0,0,0));
        setSize(new Dimension(300,200));
        setLocationRelativeTo(null);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
JPanel panel = new JPanel() {
@Override
            protected void paintComponent(Graphics g) {
                if (g instanceof Graphics2D) {
                    final int R = 240;
                    final int G = 240;
                    final int B = 240;

                    Paint p =
                        new GradientPaint(0.0f, 0.0f, new Color(R, G, B, 0),
                            0.0f, getHeight(), new Color(R, G, B, 255), true);
                    Graphics2D g2d = (Graphics2D)g;
                    g2d.setPaint(p);
                    g2d.fillRect(0, 0, getWidth(), getHeight());
                }
            }
        };
        setContentPane(panel);
        setLayout(new GridBagLayout());
        add(new JButton("I am a Button"));
    }

    public static void main(String[] args) {
        // Determine what the GraphicsDevice can support.
GraphicsEnvironment ge =
            GraphicsEnvironment.getLocalGraphicsEnvironment();
        GraphicsDevice gd = ge.getDefaultScreenDevice();
        boolean isPerPixelTranslucencySupported =
            gd.isWindowTranslucencySupported(PERPIXEL_TRANSLUCENT);

        //If translucent windows aren't supported, exit.
if (!isPerPixelTranslucencySupported) {
            System.out.println(
                "Per-pixel translucency is not supported");
                System.exit(0);
        }

        JFrame.setDefaultLookAndFeelDecorated(true);

        // Create the GUI on the event-dispatching thread
        SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                GradientTranslucentWindowDemo gtw = new
                    GradientTranslucentWindowDemo();

                // Display the window.
                gtw.setVisible(true);
            }
        });
    }
}

Note that the button is not affected by the per-pixel translucency. 请注意，该按钮不受每像素半透明的影响。Setting the per-pixel translucency affects the background pixels only. 设置每像素半透明仅影响背景像素。If you want a window that has a uniformly translucent effect on the background pixels only, you can invoke setBackground(new Color(0,0,0,alpha)) where alpha specifies your desired translucency.如果希望窗口仅对背景像素具有均匀的半透明效果，可以调用setBackground(new Color(0,0,0,alpha))，其中alpha指定所需的半透明。

How to Implement a Shaped Window如何实现形状窗口

The best practice for setting the window's shape is to invoke setShape in the componentResized method of the component event listener. 设置窗口形状的最佳实践是在组件事件侦听器的componentResized方法中调用setShape。This practice will ensure that the shape is correctly calculated for the actual size of the window. The following example uses this approach.这种做法将确保根据窗户的实际尺寸正确计算形状。以下示例使用此方法。

The ShapedWindowDemo.java example creates an oval-shaped window with 70 percent opacity. ShapedWindowDemo.java示例创建了一个不透明度为70%的椭圆形窗口。If the underlying platform does not support shaped windows, the example exits. 如果底层平台不支持成型窗口，则退出示例。If the underlying platform does not support translucency, the example uses a standard opaque window. 如果底层平台不支持半透明，则示例使用标准不透明窗口。You could modify this example to create a shaped window that also uses per-pixel translucency.您可以修改此示例以创建一个也使用逐像素半透明的成形窗口。

The code relating to shaping the window is shown in bold.与窗口形状相关的代码以粗体显示。

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import java.awt.geom.Ellipse2D;
import static java.awt.GraphicsDevice.WindowTranslucency.*;

public class ShapedWindowDemo extends JFrame {
    public ShapedWindowDemo() {
        super("ShapedWindow");
        setLayout(new GridBagLayout());

        // It is best practice to set the window's shape in
        // the componentResized method.  Then, if the window
        // changes size, the shape will be correctly recalculated.
addComponentListener(new ComponentAdapter() {
            // Give the window an elliptical shape.
            // If the window is resized, the shape is recalculated here.
@Override
            public void componentResized(ComponentEvent e) {
                setShape(new Ellipse2D.Double(0,0,getWidth(),getHeight()));
            }
        });
setUndecorated(true);
        setSize(300,200);
        setLocationRelativeTo(null);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        add(new JButton("I am a Button"));
    }

    public static void main(String[] args) {
        // Determine what the GraphicsDevice can support.
GraphicsEnvironment ge =
            GraphicsEnvironment.getLocalGraphicsEnvironment();
        GraphicsDevice gd = ge.getDefaultScreenDevice();
        final boolean isTranslucencySupported =
            gd.isWindowTranslucencySupported(TRANSLUCENT);

        //If shaped windows aren't supported, exit.
if (!gd.isWindowTranslucencySupported(PERPIXEL_TRANSPARENT)) {
            System.err.println("Shaped windows are not supported");
            System.exit(0);
        }

        //If translucent windows aren't supported,
        //create an opaque window.
        if (!isTranslucencySupported) {
            System.out.println(
                "Translucency is not supported, creating an opaque window");
        }

        // Create the GUI on the event-dispatching thread
        SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                ShapedWindowDemo sw = new ShapedWindowDemo();

                // Set the window to 70% translucency, if supported.
                if (isTranslucencySupported) {
                    sw.setOpacity(0.7f);
                }

                // Display the window.
                sw.setVisible(true);
            }
        });
    }
}

Java SE 6 Update 10 APIJava SE 6 Update 10 API
